| Diameter (D) | 1-3/4 |
|---|---|
| D1 | 1/2 |
| Radius (R) | 5/8 |
| Cutting Height (B) | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/4 |
| Replacement Bearing | 47706 |
| Flutes | 2 |

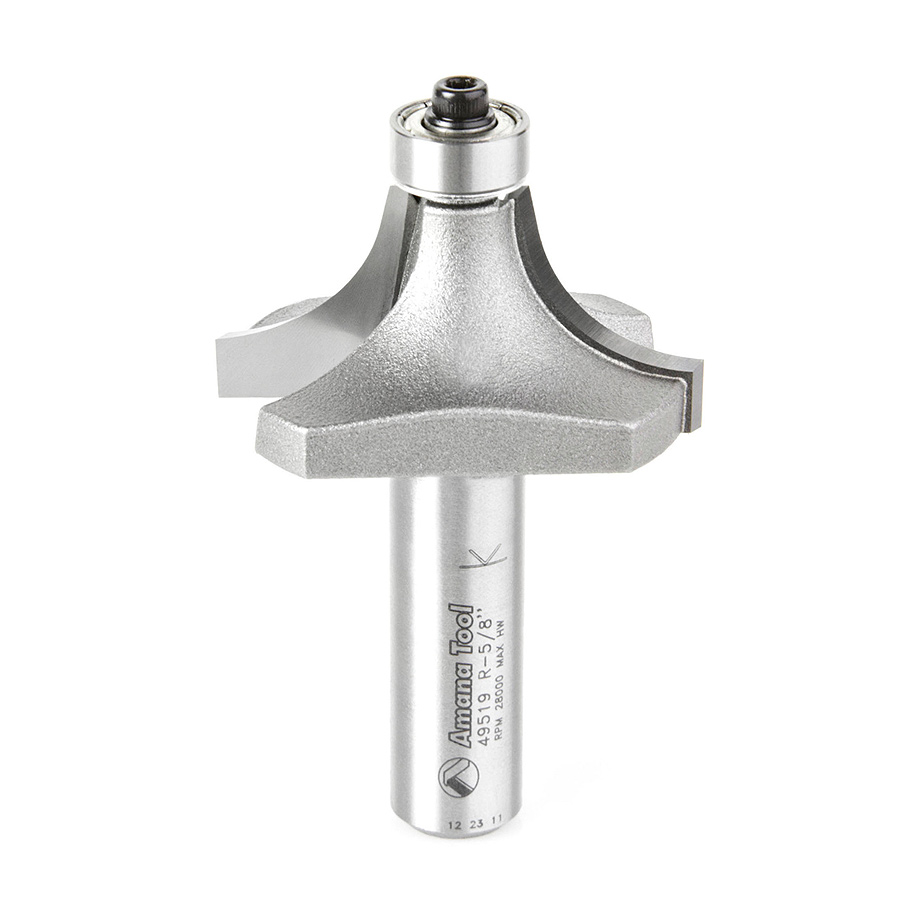

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. Maximum RPM 28,000.
Excellent for cutting:
- Acrylic
- Laminate
- MDF/HDF
- Melamine
- Wood
- Plywood
